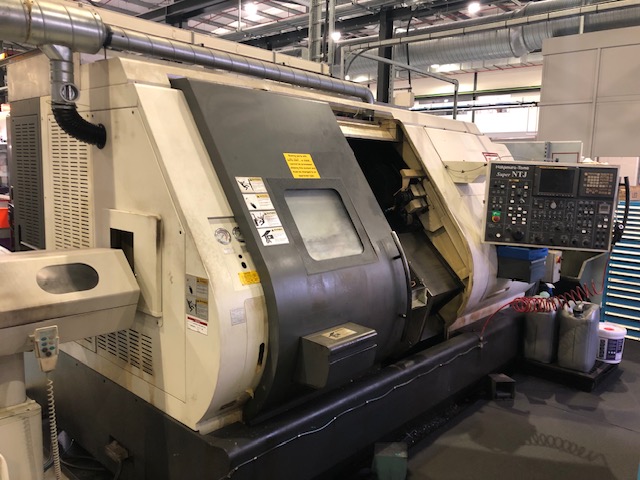

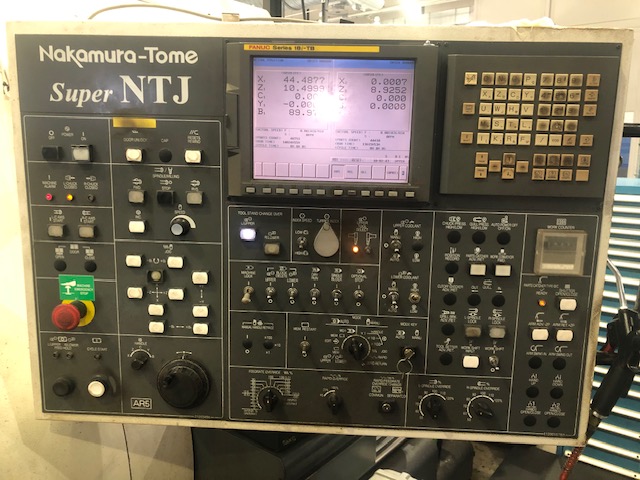

NAKAMURA – TOME SUPER NTJ with FANUC 18i-TB 9 AXIS TURN/MILL CENTRE

Y. of M.  2003/4    S/n.  B150509

MAINE SPINDLE         Bar diameter                                      65 mm

                                          Maximum turning Diameter          190mm

                                          Spindle Nose                                        A2-6

                                          Spindle Power                                     15 Kw.

                                          Spindle Speed                                      4500 RPM.

                                          C Axis indexing                                    0.001 degree.

SUB SPINDLE                Bar Diameter                                       51 mm.

                                          Spindle Nose                                        A2-5

                                          Spindle power                                     11 Kw.

                                          Spindle Speed                                     5000 RPM

                                         C Axis indexing                                  0.001 degree.

                                           Stroke                                                   760 mm.

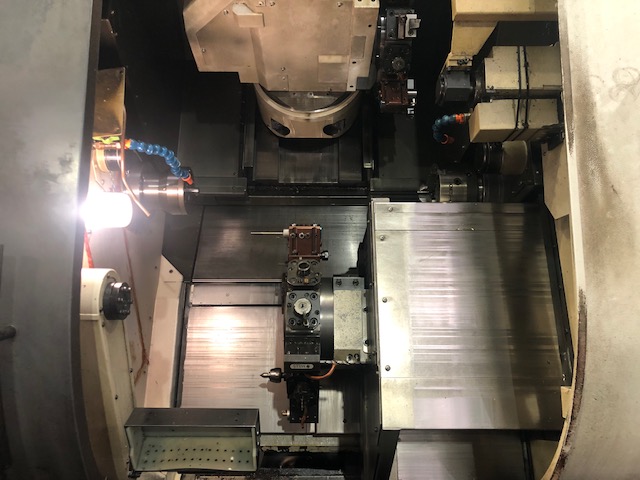

UPPER TURRET           Number of positions                          24

                                          Number of motorised positions     24

                                          Axis Travels                   X = 345mm

Y = +/- 45mm

                                                                                                             Z= 1240 mm

                                         Speed of live tools                                6000 RPM.

                                        Power for live tools                              5.5 Kw.

                                       B Axis Travel                                          +/- 91 degree

LOWER TURRET          Number of positions                            24

                                      Number of motorised positions       12

                                      Axis travel                                               X = 167.5 mm.

                                                                                                              Z  =  685 mm.

                                          Speed of live tools                                6000 RPM

                                         Power for live tools                              5.5 Kw.

EQUIPMENT

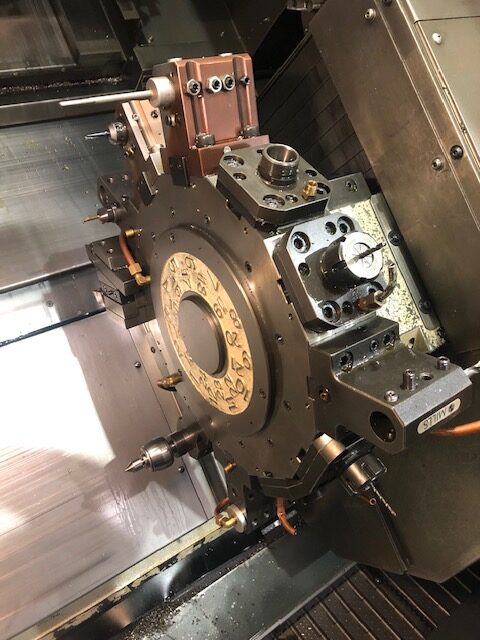

Full set of live turret tooling

Collet Chuck on main spindle

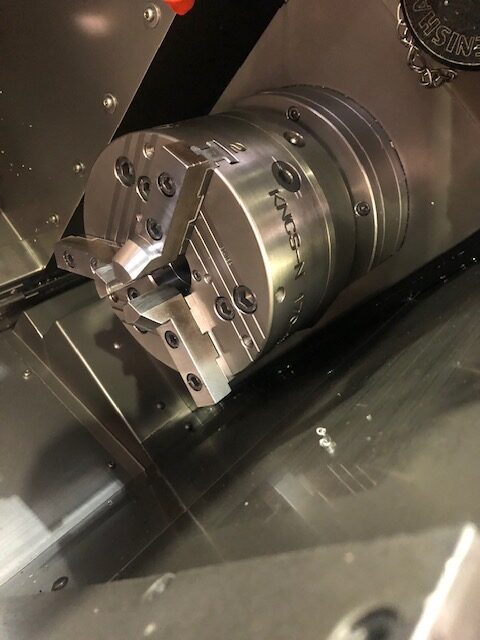

200mm Chuck on sub spindle

Tool Eye – tool presetter

Parts catcher

Chip conveyer

Manuals.

RS232/Ethernet port.

HYDRA JET -  High Pressure Coolant Unit  plus standard coolant system

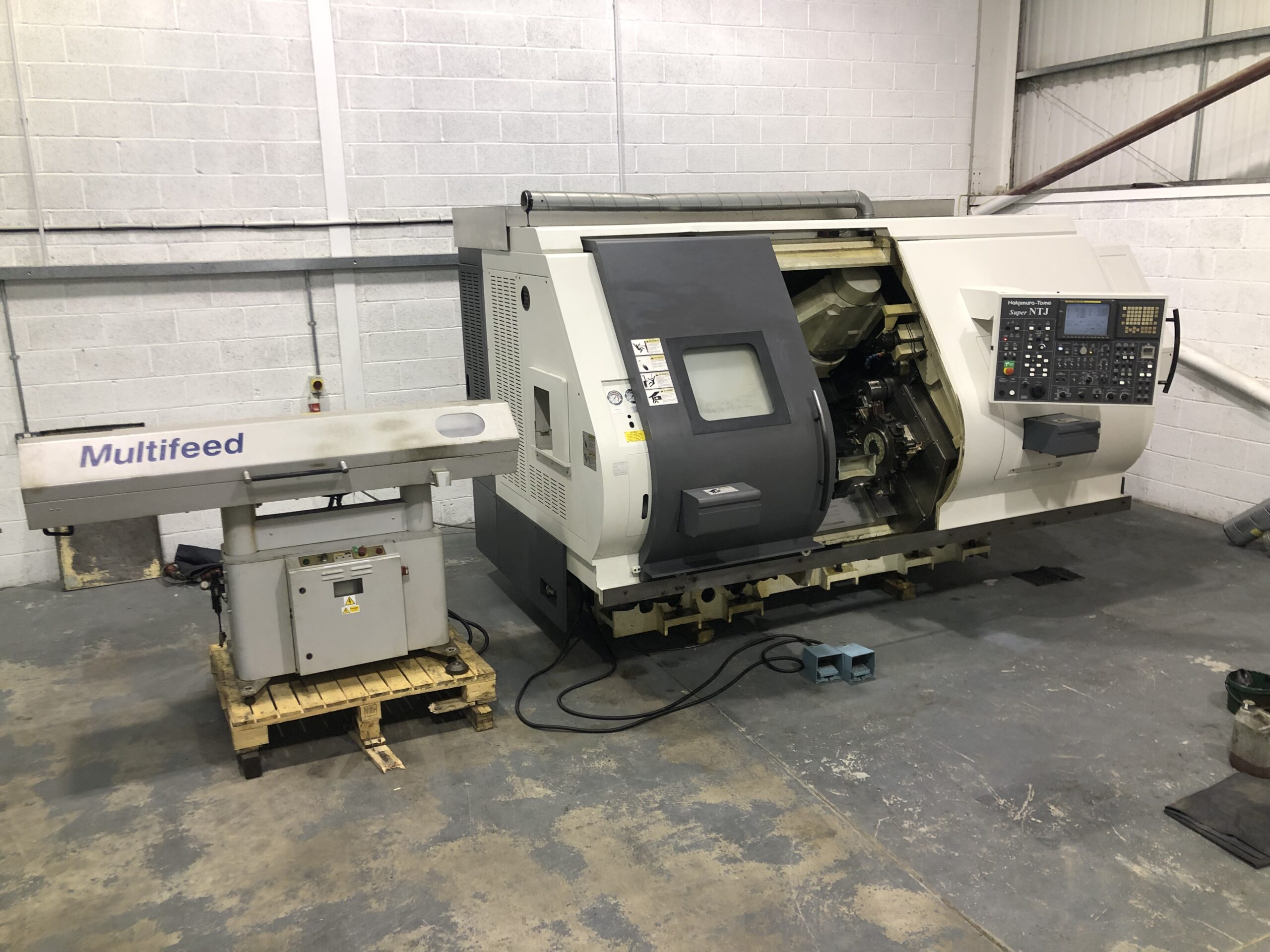

HYDRAFEED - MULTIFEED MX.1B  Bar Feed Unit.  with equipment.

ABSOLUTE ODR 2000 – stand alone fume extraction unit

Full set of Collets and 12 sets of additional chuck jaws in different forms.

FOOTPRINT

Machine           length 4 mtr. x 2.6 mtr. wide  x 2.4 mtr. high

Barfeed             length 2.mtr. x .7 mtr. wide    x 1.2mtr.  high

MACHINE WEIGHT                13000 Kg.

Price: POA
